Product Details
＋

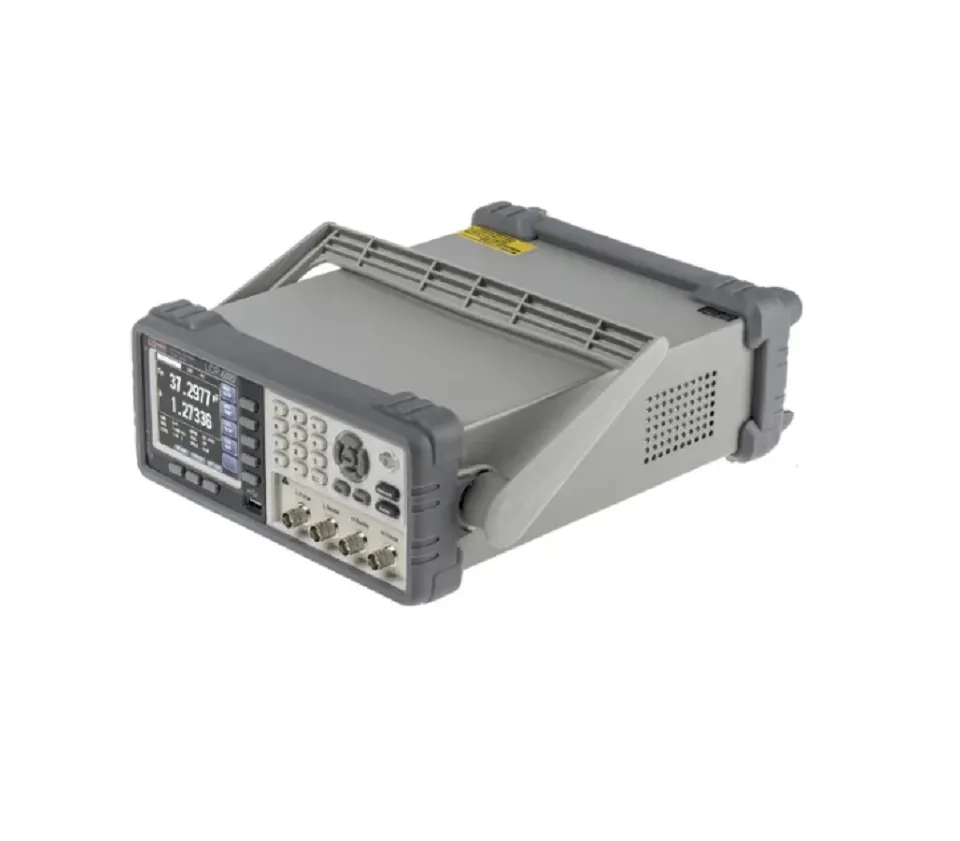

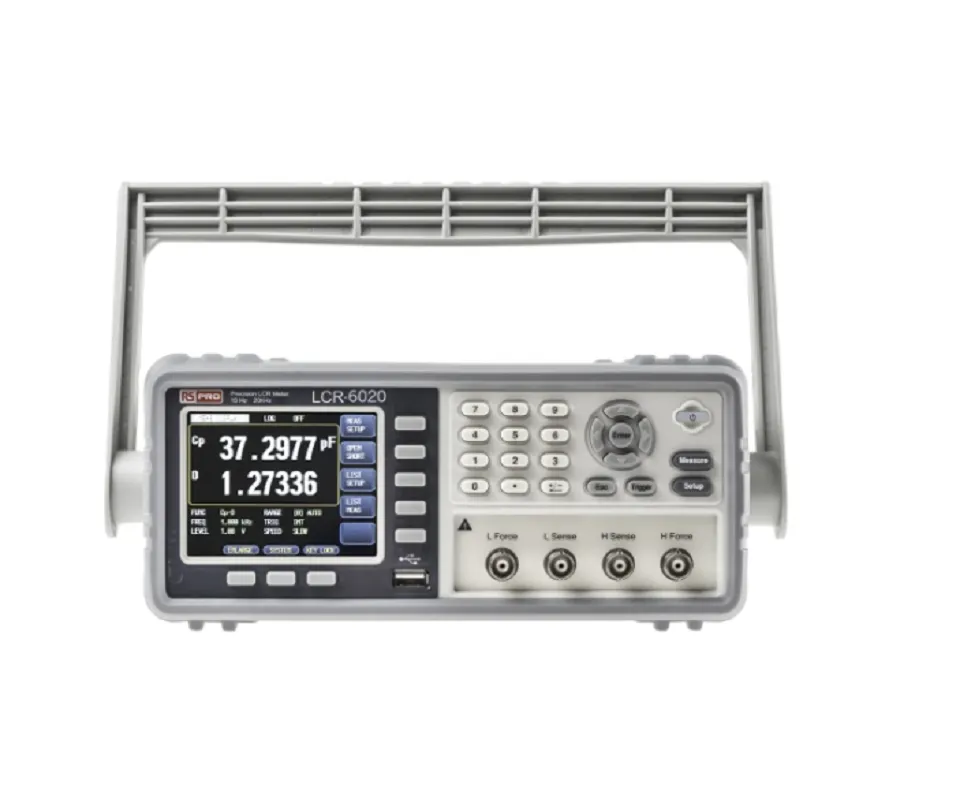

This is a RS Pro LCR-6020 9.9mF 99 MΩ 9999H Bench LCR Meter 117-6717. RS Pro LCR-6000 Series meters feature a 0.05% basic accuracy, compact size (2U half-rack) and large (3.5 inch) color LCD. Measurement efficiency is increased by the simultaneous display on screen of not only setting criteria and measured results but also two additional monitoring parameters. The measurement results include a PASS/FAIL display for fast validation. Operators can freely change frequency, within the range of the model, so can save the time and hassle of repeating zero operations. Also included are Safety instructions, power cord, test fixture LCR-06A, and CD. (user manual, PC software)
Features and Benefits:
- • 3.5 inch colour LCD
- • Consecutive Test Frequency
- • Basic accuracy 0.05%
- • Measuring speed up to maximum 25 ms
- • Full frequency range or spot OPEN/SHORT
- • 16 major/secondary parameter measurement combinations and 2 additional monitoring parameters (• maximum 4 different parameters can be shown simultaneously)
- • DCR measurement and internal DC bias voltage (±2.5 V)
- • Auto Level Control (ALC) function
- • BIN function provides 9BIN and 1AUX
- • 10 points listed test function to select different frequency, voltage and current criteria

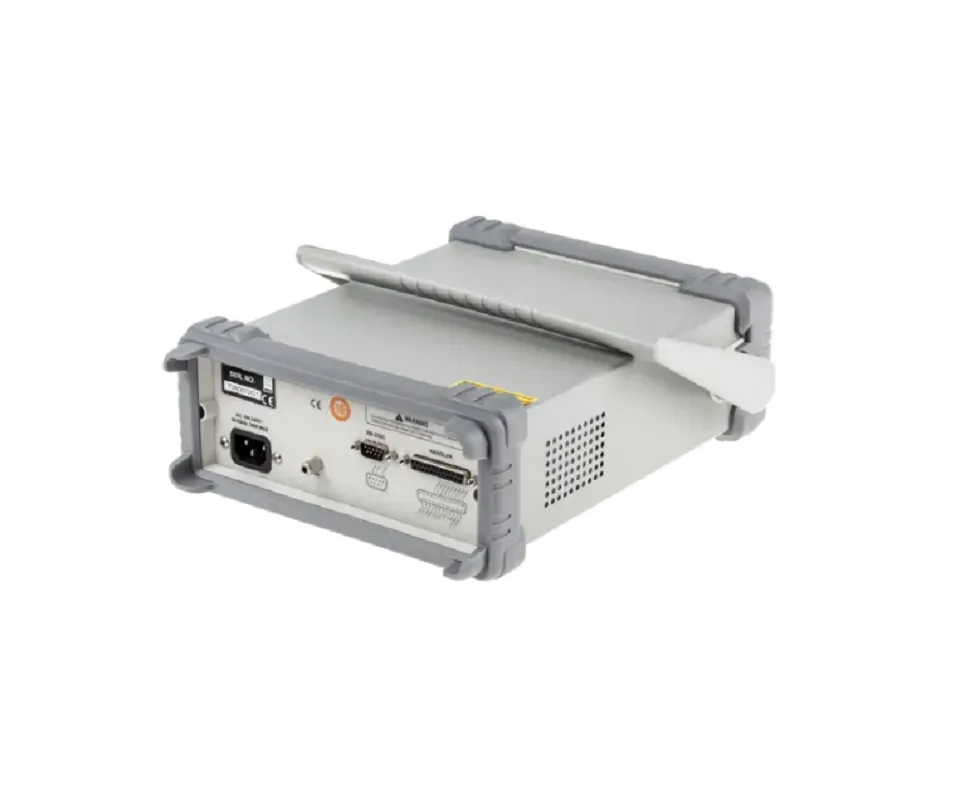

- • RS-232C, Handler and USB storage interfaces
- • Compact size (2U half-rack)
Specifications:
- Maximum Capacitance Measurement 9.9mF
- Maximum Resistance Measurement 99 MΩ
- Maximum Inductance Measurement 9999H
- Bench/Handheld Bench
- Display Type LCD
- Power Source Mains
- Dimensions 265 x 312 x 107mm
- Weight 3kg
- Height 107mm
- Length 265mm
- Model Number p LCR-6020
- Width 312mm
