Product Details
＋

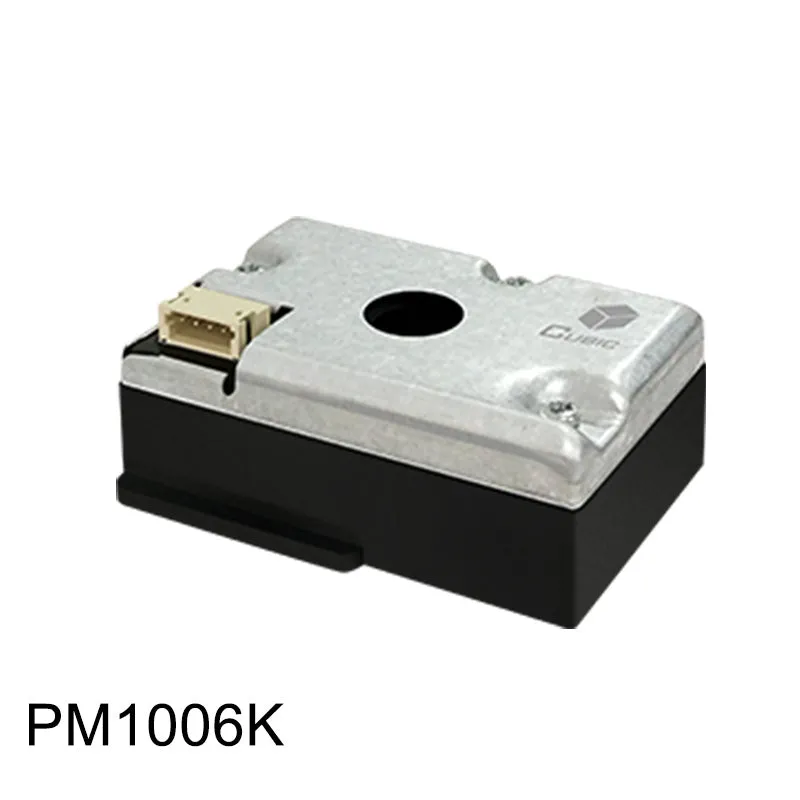

The PM1006K Low Cost PM2.5 Sensor is designed to provide real time output PM2.5 with dust deposition self-correction. It can also measure dust concentration in the air by detecting the intensity of scattered light, and output real time concentration via mathematical algorithm and scientific calibration.
Features
- Particle Measurement Range: 0.3µm to 10µm
- Built-In MCU directly outputs particle mass concentration
- EMI shielded
- Temperature compensation throughout the entire measurement range
Models
PM1006K - low cost pm2.5 sensor with real-time output and dust deposition self correction.
PM1006K Specifications
- Measured particle size: 0.3µm to 10µm
- Measurement range: 0 to 1,000µg/m3
- Accuracy: /–20% or /–20µg/m3
- Temperature range: -4˚F to 167˚F (-20˚C to 75˚C)
- Humidity range: 0 to 95% RH
- Supply voltage: 5.0VDC /-0.2VDC
- Supply current: <30mA
- Communication interfaces: UART & PWM
- Dimensions: 59mm x 45mm x 20mm
- Weight: 17.4g
- Lifespan: 5 years
Warranty
- 90 days - See CO2Meter Terms and Conditions
