Product Details
＋

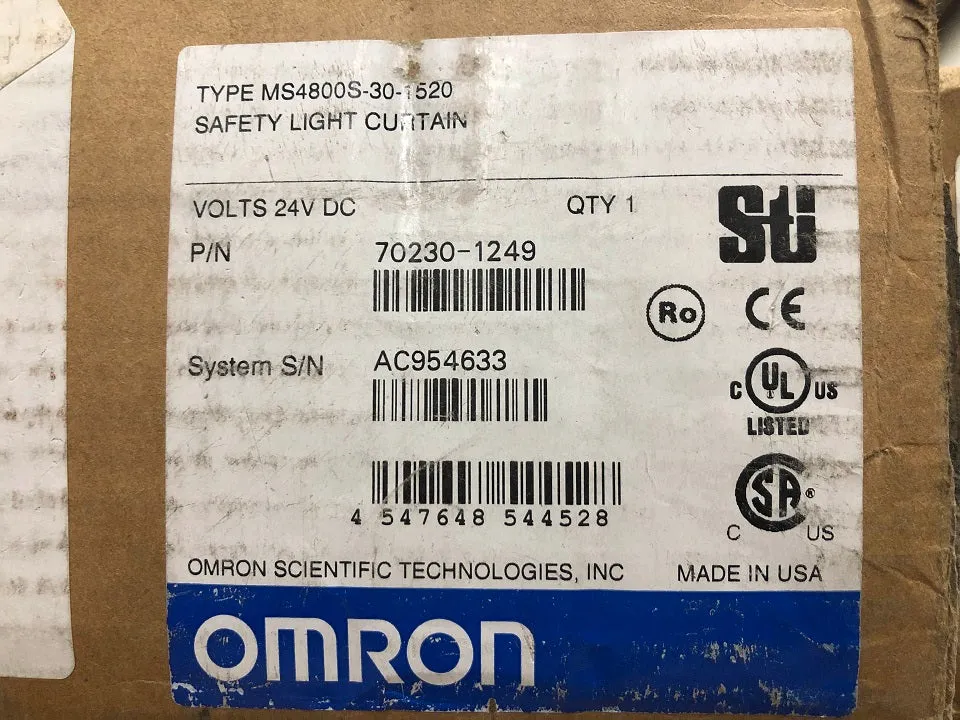

This is an Omron 24VDC Type MS4800S-30-1520 Safety Light Curtain. The MS4800 light curtain family is an all-purpose light curtain available in three distinct versions. These versions are identified as the MS4800A, MS4800B and the MS4800S. The MS4800A and MS4800B feature set (configuration) can be changed through the use of an external device called the Programming Diagnostic Module (PDM) and on the MS4800S through selector switches.
Features:
- Resolutions: 14 mm (0.55 In.), 20 mm (0.79 In.), 30 mm (1.18 In.) and 40 mm (1.57 In.)
- Ranges: 7 m (23 Ft.) for 14 mm Resolution Systems; and 20 m (65 Ft.) for 20, 30 and 40 mm Resolution Systems
- Protected Heights: 280 to 1800 mm (11 to 70 In.) for 14 and 20 mm Resolution Systems; 280 to 2120 mm (11 to 83 In.) for 30 mm Resolution Systems; and 360 to 2040 mm (14 to 80.3 In.) for 40 mm Resolution Systems
- Compact Size: 50 × 38 mm (2 × 1.5 In.)
- “Two-Box” Design — No Separate Control Box; No Cable Between Transmitter and Receiver
- Individual Beam Indicators
- Quick and Easy Fixed Blanking Programming Option “SB”
Specifications:
- Measurement Range: 1520 (59.8)
- Primary Type: Photoelectric
- Series: MS4800 Series
- Standards: CSA, CE, cUL, TUV
- Type: Light Curtain
- Voltage Rating: 24 V
