The Somfy LTN motor is currently exclusive only to Ozroll Industries in Australia.

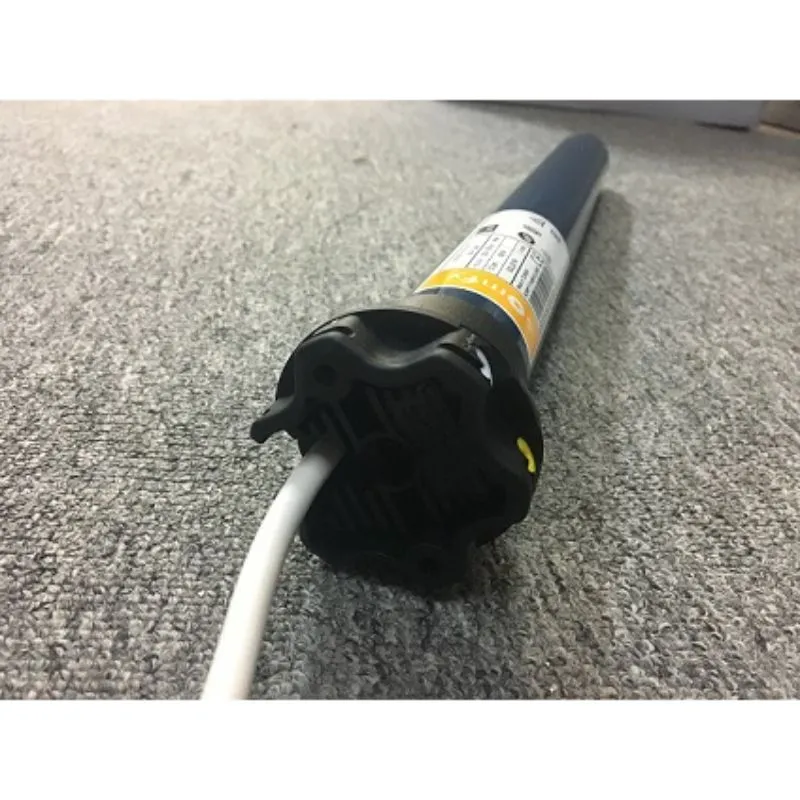

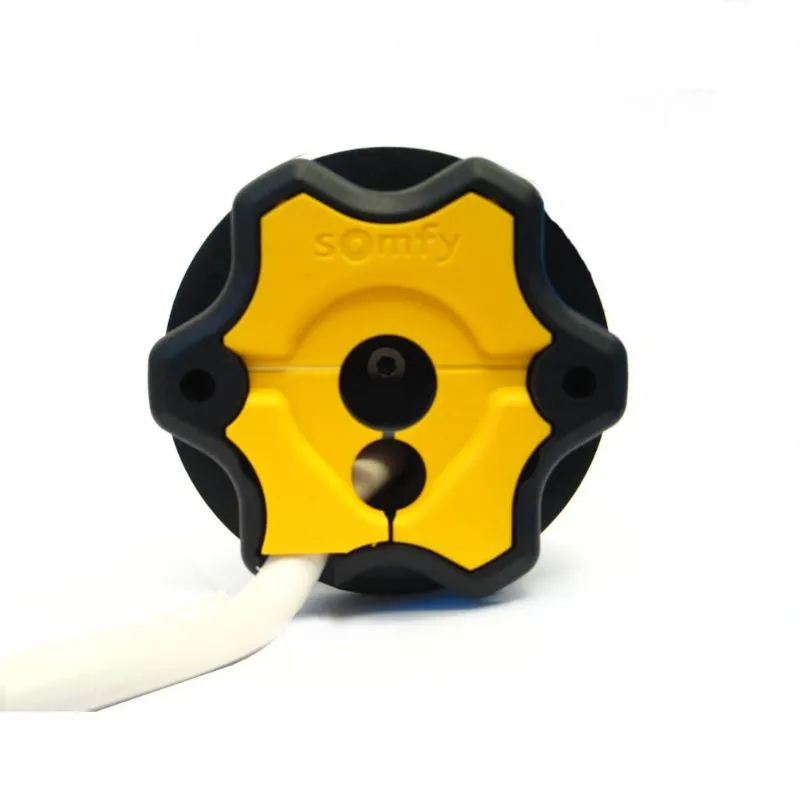

These motors are a high quality but cost-effective option, with the benefit of a removable plug at the motor head and progressive limit settings which allow for simple installation and shutter servicing.



Support

( LTN has different limit setting guide)

Technical Information

Electrical

Consumption during operation

170 W

Minimum voltage

207 V

Maximum Voltage

244 V

Rated current

0.75 A

Nominal Voltage / Frequency

230V - 50 Hz

Mechanical

Capacity of the limit switch unit

34 turns

Type of limit switch unit

Quick limit switch

Nominal Speed

17 rpm

Nominal Torque

15-30 Nm

Repeatability

± 5 °



Standard

Approval

RCM

Protection Index

IP 44

Insulation class

Class I

Cable

Plug in cable

Black CSI Plug

Cable type

PVC

Wire section

0,75 mm²

Color

White

Wire Length

2,5 m

Number of wires of the cable

4

Dimension

30nm

Length (L1)580 mm

Basic crown for tube diameter

50 x 1,5 mm

Weight2,81 Kg

Overall length (L3)

590 mm

Riveting position distance (L2)

567mm



Other

Thermal time

4 mn

Noise level (according to Somfy measures)

56 dBA

Working temperature

-10 to 40 °C
