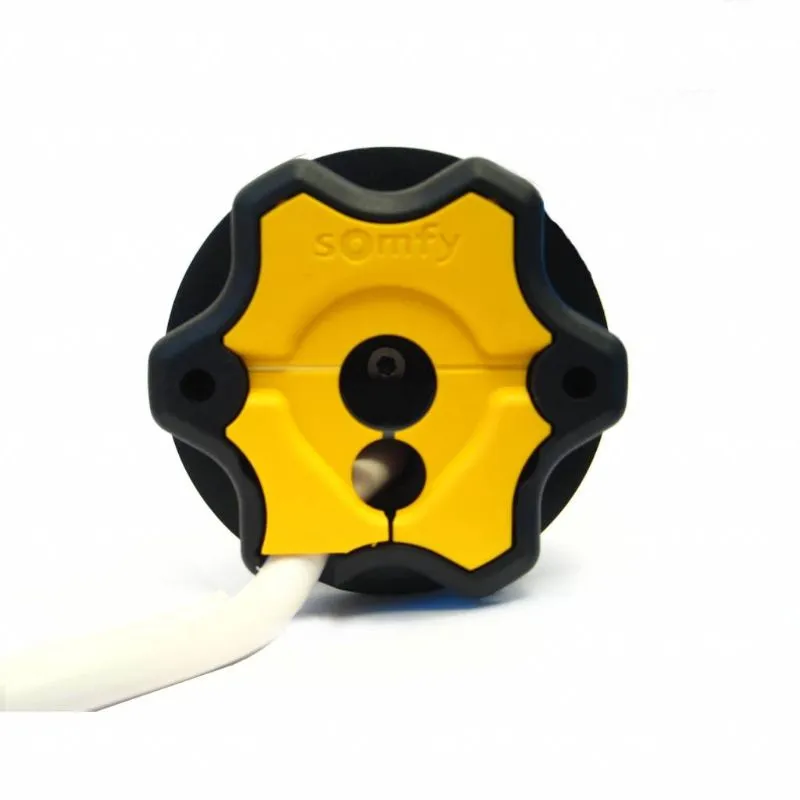

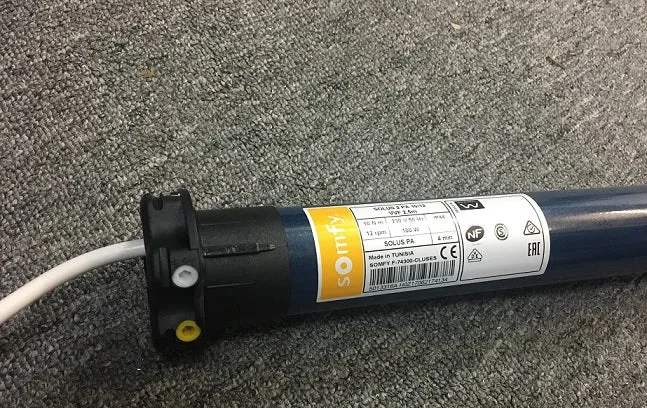

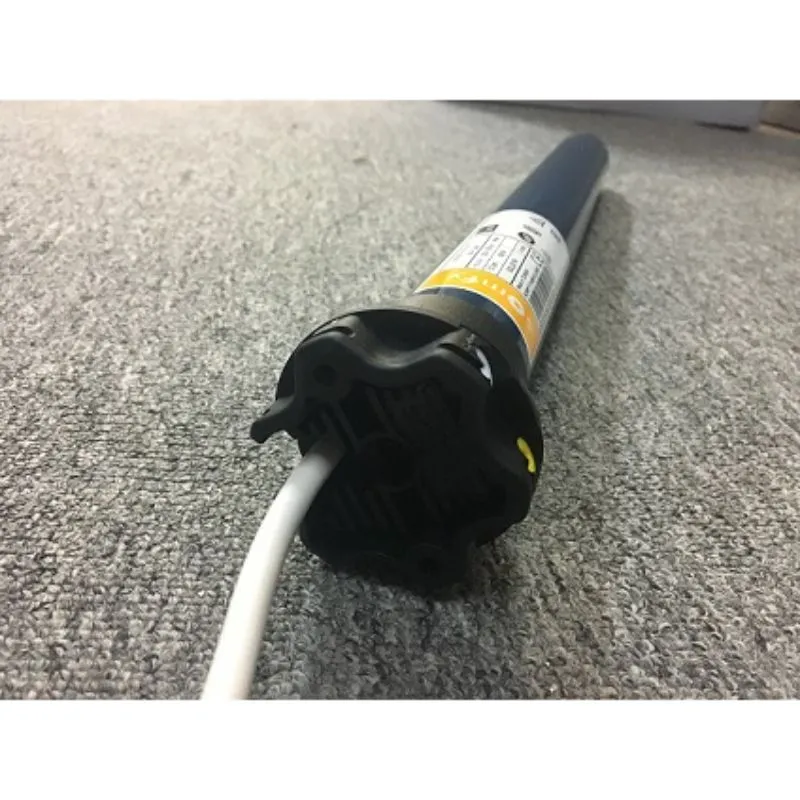

With all the benefits of the standard LTN 50 WT but with a Radio Transmitted Signal (RTS, this motor offers a cost saving option for remote controlled shutters. It can be used in conjunction with the range of Somfy’s quality remotes.

Support

Technical Information

Mechanical

Capacity of the limit switch unit

34 turns

Type of limit switch unit

Quick limit switch

Nominal Speed

17 rpm

Nominal Torque

15-30 Nm

Repeatabilty

± 5 °

Electrical

Consumption during operation

170 W

Minimum voltage

207 V

Maximum Voltage

244 V

Rated current

0.75 A

Nominal Voltage / Frequency

230V - 50 Hz

Standard

Approval

RCM

Protection Index

IP 44

Insulation class

Class I

Cable

Plug in cable

Black CSI Plug

Cable type

PVC

Wire section

0,75 mm²

Color

White

Wire Length

2,5 m

Number of wires of the cable

4

Dimension

15nm

Length (L1)

605 mm

Basic crown for tube diameter

50 x 1,5 mm

Weight

2,81 Kg

Overall length (L3)

620 mm

Riveting position distance (L2)

595 mm

Other

Thermal time

4 mn

Noise level (according to Somfy measures)

56 dBA

Working temperature

-10 to 40 °C
