Product Details
＋

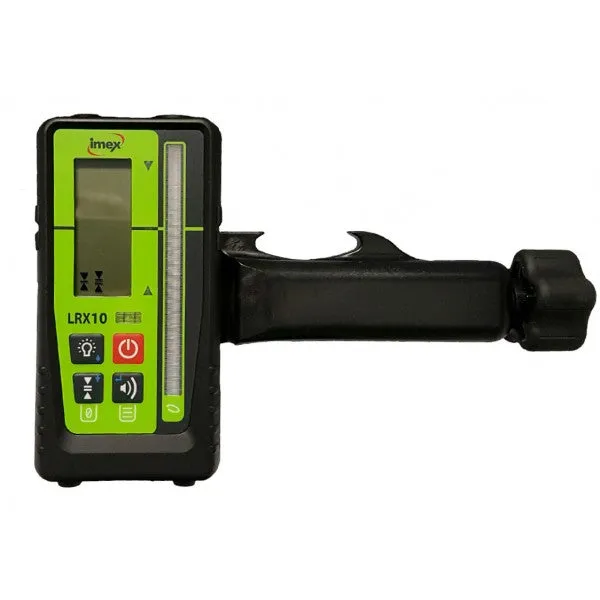

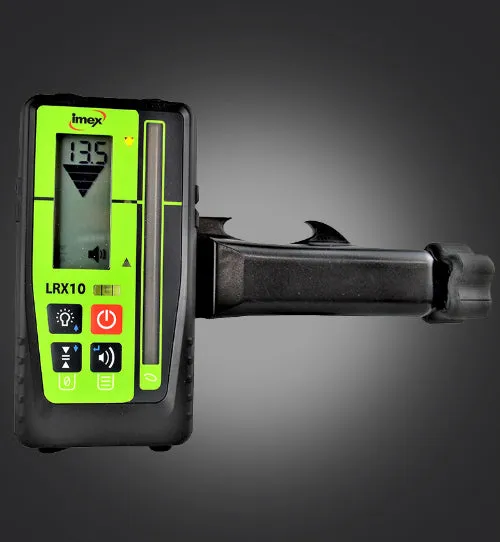

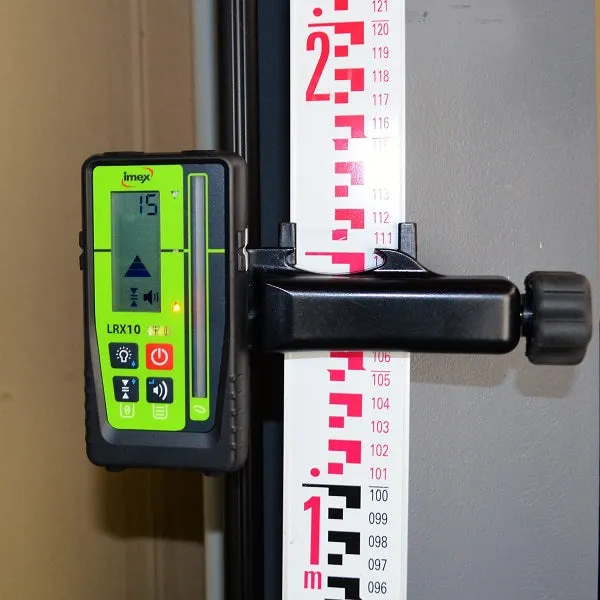

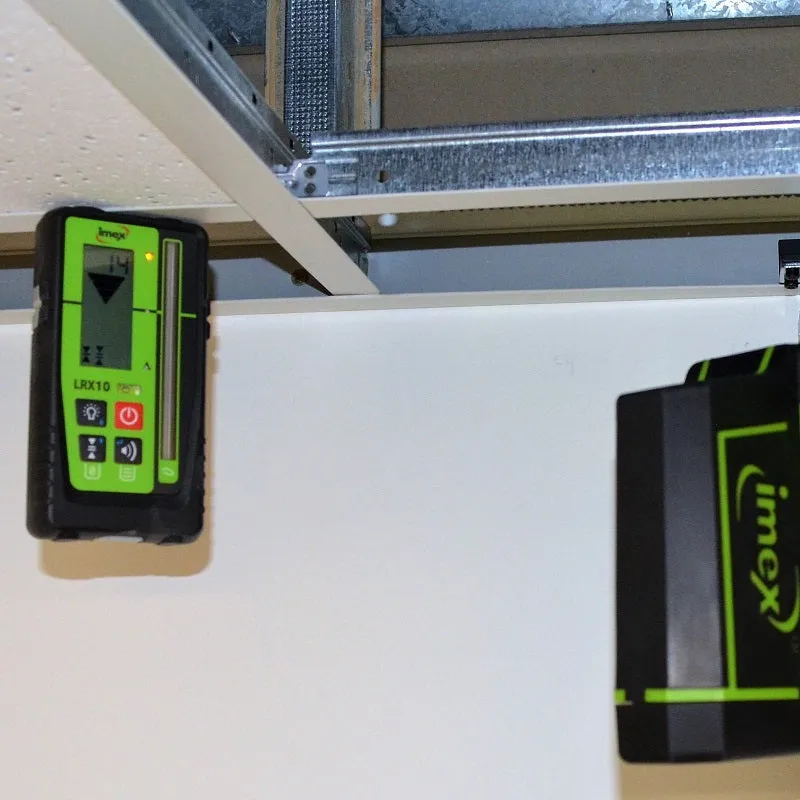

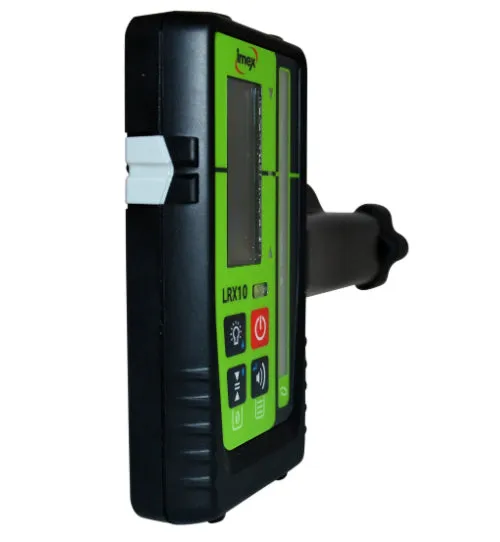

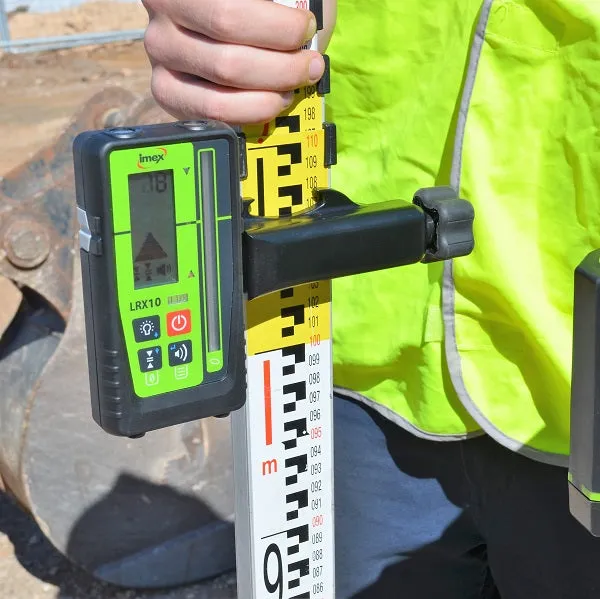

Imex LRX10 90mm Reading Digital Laser Detector
Product Overview
Take the guess work out of levelling with the mm reading Imex detectors. Up to 0.5mm reading in up to a 90mm window. The Imex Digital Detectors range increases your accuracy and efficiency.
Features
- 90mm Detection Window
- Red or Green beam pick-up
- 0.5mm up to 10.00mm reading increments
- Heavy Duty, Waterproof and Shockproof
- Made in Germany
- 3 Year Warranty
Specifications
| Part Number | 012-LRX10 |
| EAN | 9342649001989 |
| Detection Window | 90mm 60 to -30 |
| Range | 300m Radius |
| Detectable Spectrum | Red, Green Laser |
| Resolution | Fine – 1.0mm, Medium – 2.0mm, Course – 5.0mm, Ultra-Course – 10.0mm |
| Magnets | 2 x Topface |
| Drop test on concrete | 1.5m Height |
| Waterproof, Shockproof Rating | IP67 |
