Product Details
＋

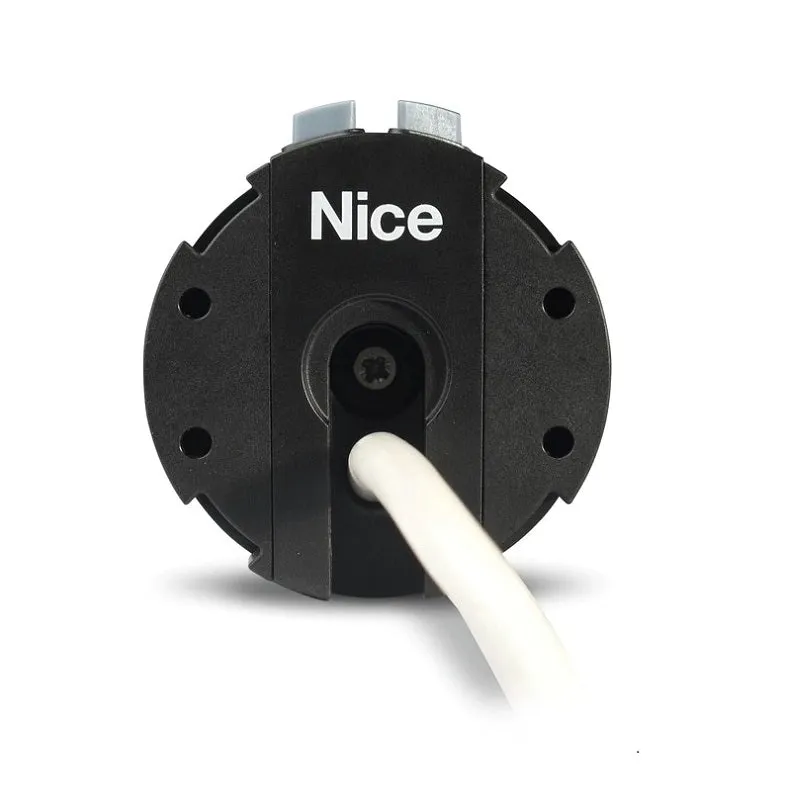

Push Button Limits, built-in radio receiver and TTBus technology
Shutter motor programmed with a mechanical position limit switch, with a built-in radio receiver and TTBus technology.
Perfect for blinds and awnings.
Size M Ø45mm.
Convenient programming of limit positions by pressing a button. Remote programming of functions
During programming, the blind will confirm the correctness of the settings by short movements of the blind.
Support
Technical Information
| Model | E PLUS M 1517 |
| ELECTRICAL DATA | |
| POWER SUPPLY (VAC/Hz) | 230/50 |
| CURRENT CONSUMPTION (A) | 0.75 |
| POWER(W) | 170 |
| POWER CONSUMPTION IN STAND-BY MODE (W) | <0.5 |
| PERFORMANCE DATA | |
| TORQUE (Nm) | 15 |
| SPEED (rpm) | 17 |
| NUMBER OF ROTATIONS | 92 |
| CONTINUOUS OPERATION TIME (min) | 4 |
| DIMENSIONAL DATA | |
| LENGTH (L) (mm) | 451 |
| ENGINE WEIGHT (kg) | 2.45 |
| PACKAGE DIMENSIONS (mm) | 90x90x500 |
