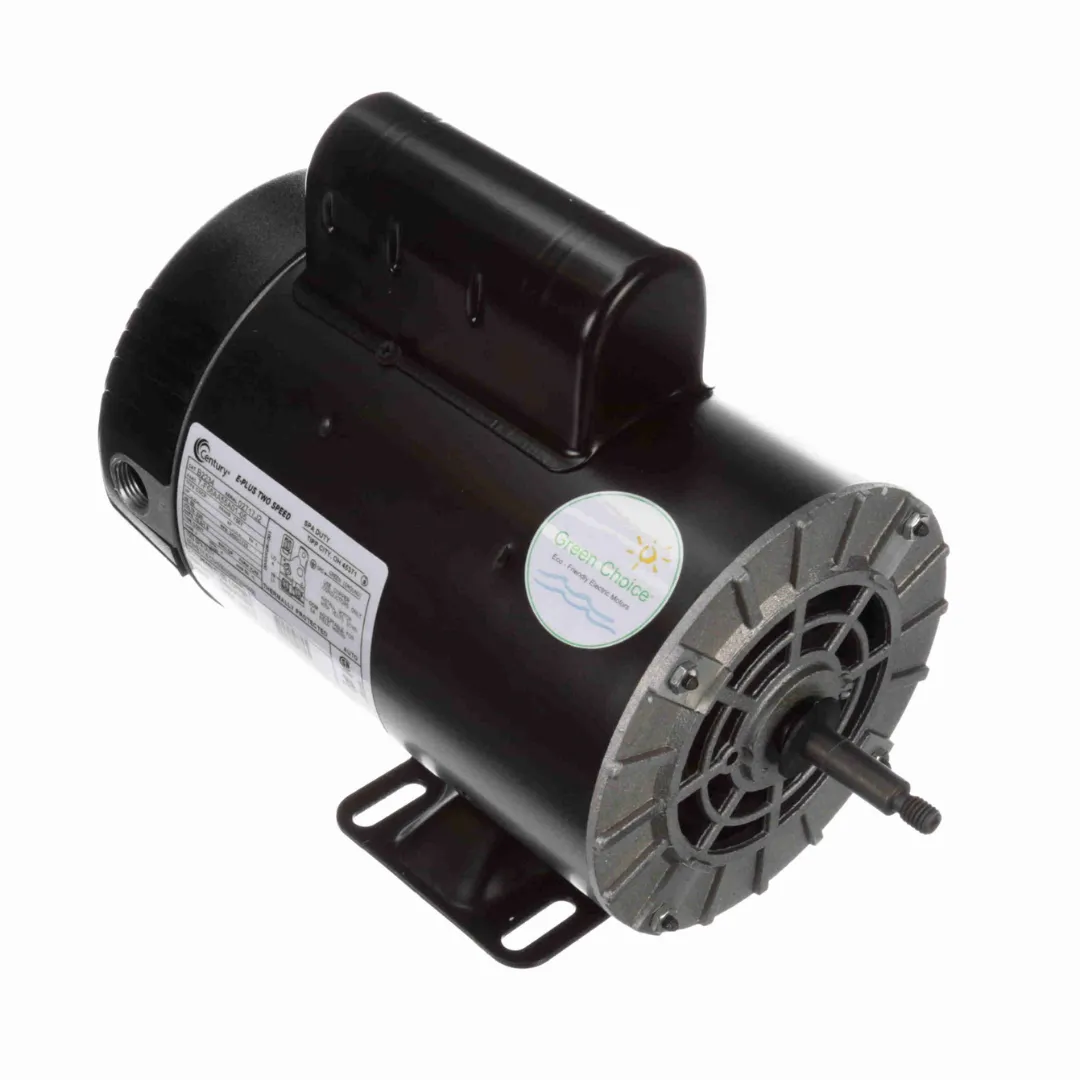

Product Details
＋
- Two Speed
- PSC on High Speed
- Cap Start/Cap Run on Low Speed
- Rigid Base
- 50°C Ambient
- Four Thru Bolts on a 5.812 Bolt Circle
- Open Dripproof
- Meets California Energy Commission Appliance Regulations 2008
Specifications:
- Phase: 1
- Output HP: 3.0 / 0.38
- SPL HpOutput KW: 2.2 kW
- Voltage: 230 V
- Speed: 3485/1745 rpm
- Service Factor: 1
- Frame: Y56Y
- Enclosure: Drip Proof
- Thermal Protection: Thermally Protected
- Ambient Temperature: 60 °C
- Frequency: 60 Hz
- Current: 10.0/1.8 A
- Duty: Continuous
- Insulation Class: F
- UL: Recognized
- CSA: Y
- Number of Speeds: 2
