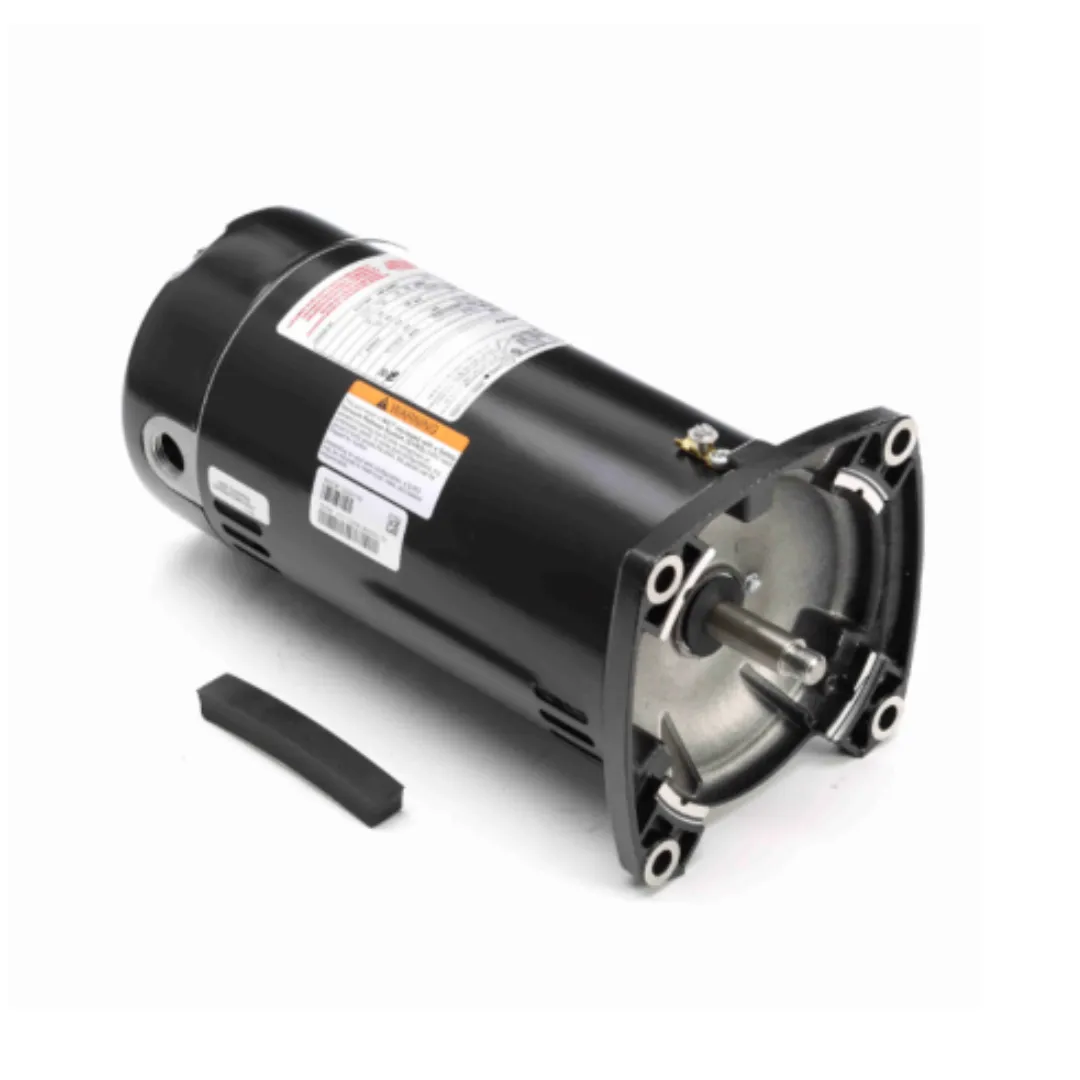

Product Details
＋
- Sealed Ball Bearings
- Capacitor Start
- Open Dripproof
- 303 Stainless Steel Shaft
- 50°C Ambient
- UL 1081 Design
Specifications:
- Brand: Century
- Ambient Temperature: 50 degrees Celsius
- Shipping Dimensions: 19.75 x 9.25 x 9.25 inch
- Amps High Speed: 15.3
- Amps Low Speed: 7.6
- Application: Above Ground, Pool, Spa
- Bearing Type: Sealed Ball
- Color: Black
- Duty Cycle: Continuous
- Weight: 22 pound
- Efficiency Group: Standard
- Frequency Rating (Hz): 60
- Horsepower: 1 horsepower
- Insulation Class: B
- Motor Enclosure Type: Open Drip Proof
- Motor Frame Size: 48Y
- Motor Shaft Rotation: Counterclockwise Pulley End
- Motor Speed: 1-Speed
- Motor Thermal Protection: Automatic Reset
- Phase: Single
- RPMs Max: 3450
- RPMs Min: 3450
- Service Factor: 1.25
- Shaft Design: Threaded
- Shaft Diameter: 0.625 inch
- Shaft Material: 303 Stainless Steel
- Standards Approvals: CSA Certified
- Voltage: 115V, 230V
- Diameter: 5.625 inch
- Flange Type: Square
- Frame Material: Rolled Steel
- Motor Capacitor Type: Start
- UPC Code: 786674033246
*Please Note: Unable to sell or install this product in New York or California.
