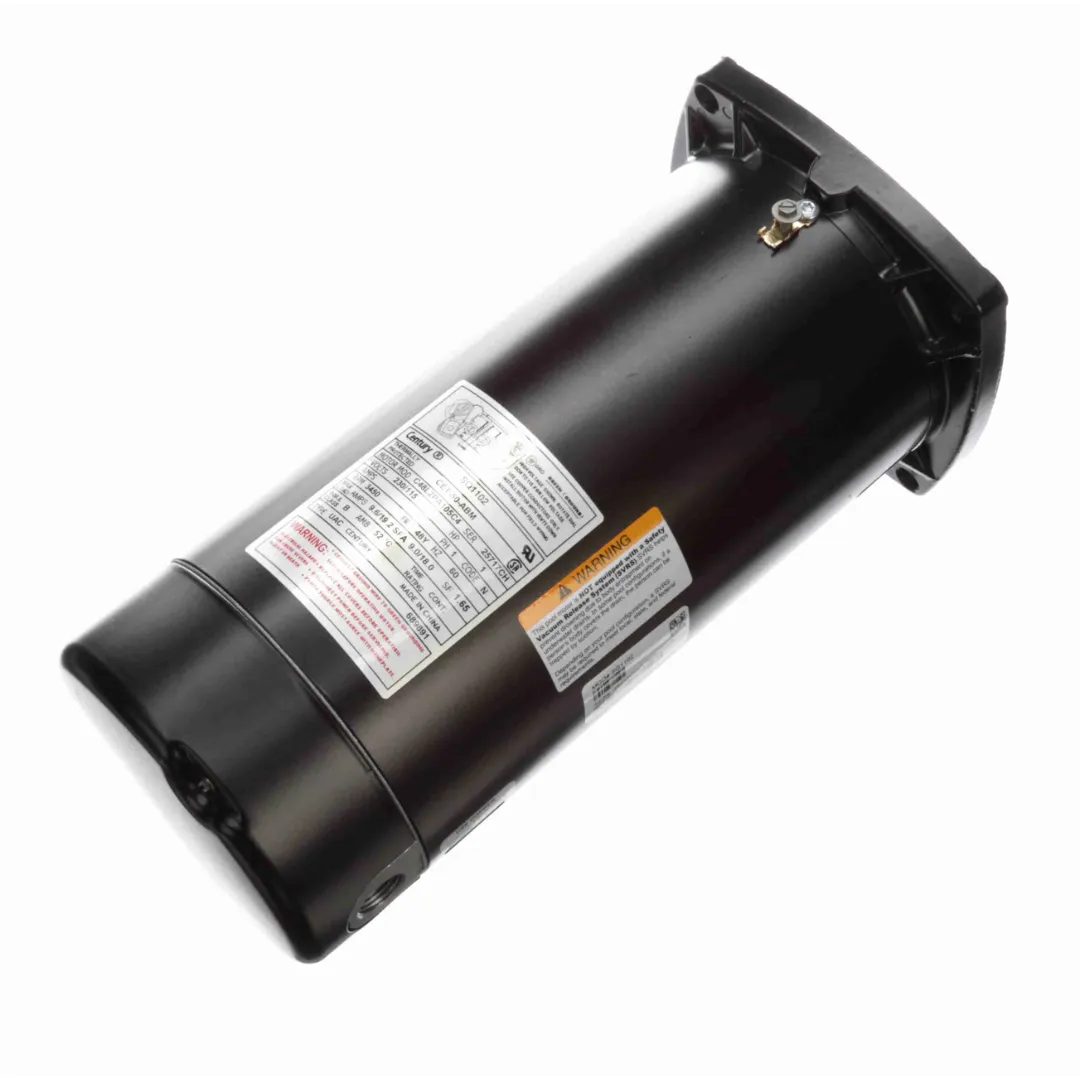

SQ1102 1 HP 115/230V FLANGED MOTOR

• Sealed Ball Bearings
• Capacitor Start
• Open Dripproof
• 303 Stainless Steel Shaft
• 50°C Ambient
• UL 1081 Design

Specifications:

• Phase: 1
• Output HP: 1 Hp
• Output KW: 0.75 kW
• Voltage: 230/115 V
• Speed: 3450 rpm
• Service Factor: 1.65
• Frame: 48Y
• Enclosure: Open Drip Proof
• Thermal Protection: Automatic
• Efficiency: 55.2 %
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: 9.0/18.0 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• Number of Speeds: 1

Unable to sell or install this product in New York or California.
