Name: 433Mhz DC 12V-24V 1CH WiFi Smart Switch Garage Door Opener
SKU: 2037160

Product Details ＋

Features:

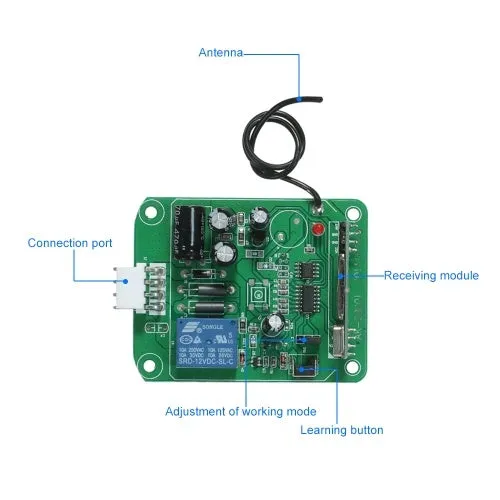

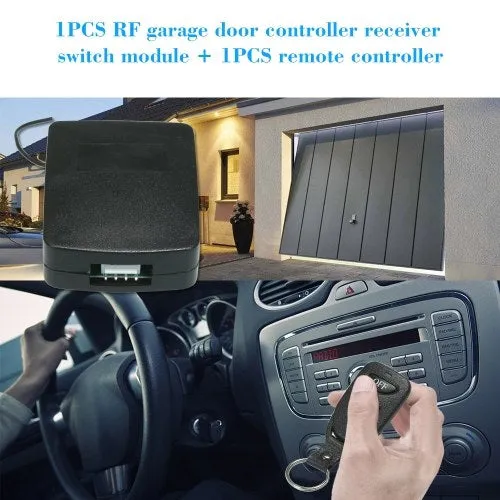

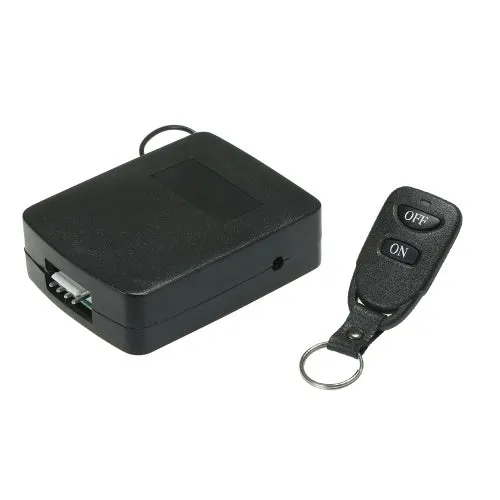

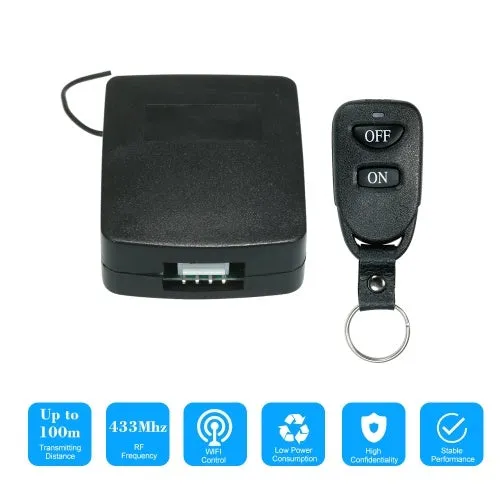

*1PCS RF garage door controller receiver switch module 1PCS remote controller. With small size take up very little space work in a multitude of different systems.

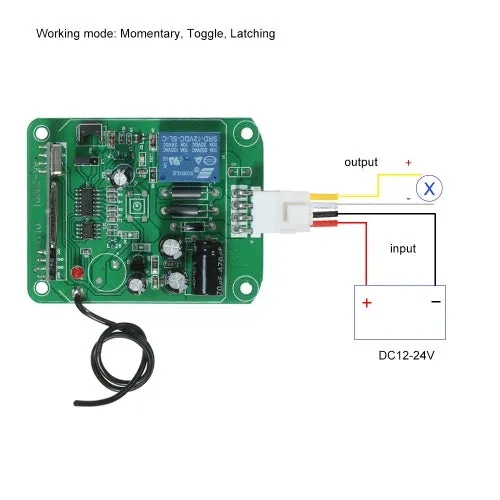

*Stable and reliable performance high receive sensitivity low power consumption. Very convenient and safe to use simple wiring diagram connection way. Easy operation.

*Support remote control up to 20 pieces. The working mode can be changed by yourself: you can switch to momentary toggle latching three modes as you need.

*Widely used in our daily life. It can connect to the access control system garage door light electric curtain household appliances electrically operated doors motor control water pump lifting equipment security system etc.

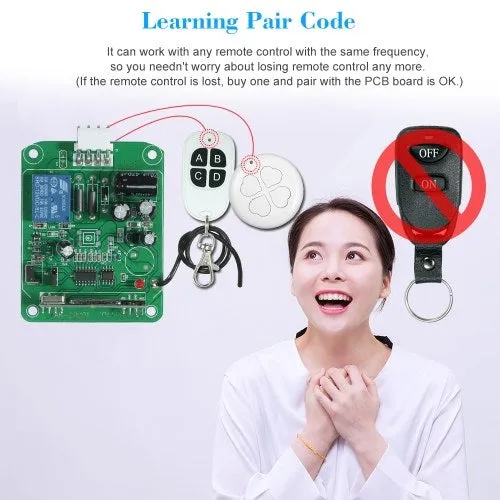

*Learning pair code: it can work with any remote control with the same frequency so you needn't worry about losing remote control any more. (If the remote control is lost buy one and pair with the PCB board is OK.)

Receiver Specifications:

Channels: 1

Working voltage: DC12-24V

Frequency: 433MHz

Sensitivity: -105dBm

Power consumption: <10mA

Output Current: <10A

Remote control storage: up to 20 PCS

Working mode: Momentary Toggle Latching

Wiring type: fixed terminal

Output Terminal: NO NC COM

Supporting Remote Control Type: learning code (1527 chip) ; fixed code
